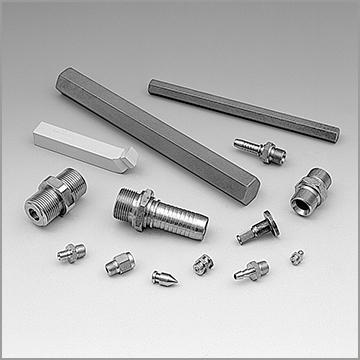

Free cutting high speed steel with sulphur

These steel grades give improved machinability improving tool life. The production of these steels has to be carefully monitored in order to achieve uniform distribution of sulphide inclusions throughout all sections with good mechanical properties and excellent machinability.

Free cutting steels

Steel grade

Corresponding standard Average chemical composition
Werkstoff ORI Martin C Mn Si S P
11SMn30 1.0715 Z09Z21 0,08 1,1 0,05 0,3 0,05
11SMn37 1.0736 Z09Z31 0,08 1,2 0,05 0,38 0,05
SAE 1117 Z09Z11 0,16 1,1 0,2 0,1 0,02
35S20 1.0726 Z35S20 0,35 0,9 0,2 0,2 0,02
36SMn14 1.0764 Z35S12 0,35 1,5 - 0,14 -
44SMn28 1.0762 Z45Z11 0,44 1,5 - 0,29 -
45S10 Z45S10 0,42 0,98 - 0,1 -
46S20 1.0727 Z45S20 0,45 0,9 0,2 0,2 0,02
Download

Products



ORI Martin S.p.A.
Wire rod

Rolling takes place at a controlled temperature using the very latest technology. This allows a smaller grain size to be obtained together with a more fine and even structure. Optimal characteristics for subsequent use in drawing and cold moulding in addition to a higher degree of globularisation after the annealing process.

Hot rolled bars

Production takes place in a rolling mill at a controlled temperature using the very latest technology which guarantees a fine grain and homogeneous structure; the calibrator finishing block allows bars with restricted dimensional tolerances.

Continuous casting billets

ORI Martin spa sells continuous casting steel billets to rolling mills and hot forgers. The refining process with the degassing station and the casting through submerged nozzles guarantee the supply of billets of high-quality engineering steel.

Sales: ORI Martin S.p.A.

Alessandro Lombardi

Head of Sales

Italy

Phone +39 030 3999 214

Giovanni Caropreso

Sales Italy

Italy

Phone +39 030 3999 292

Roberta Crescini

Sales Italy

Italy

Phone +39 030 3999 224

Aldo Pezzoli

Sales Italy

Italy

Phone +39 030 3999 441

Federica Papa

Export sales

Italy

Phone +39 030 3999 404

Paola Salvetti

Export Sales

Italy

Phone +39 030 3999 440

Elisa Pini

Export sales and logistic

Italy

Phone +39 030 3999 227

Annalisa Fiolini

Export logistic

Italy

Phone +39 030 3999 221

Lino Fasani

Export logistic

Italy

Phone +39 030 3999 239

Michel Pham

Sales manager

France

Phone +33 3 873 610 90

Maria Picone

Sales assistance

France

Phone +33 387 361 090


ORI Martin France Sarl

Sales: ORI Martin France Sarl

Michel Pham

Sales manager

France

Phone +33 3 873 610 90

Maria Picone

Sales assistance

France

Phone +33 387 361 090


ORI Martin Deutschland GmbH



Sales: ORI Martin Deutschland GmbH

Mario Gerth

Leiter Vertrieb

Germany

Phone +49 (0)2151 15 103 00


Trafilati Martin S.p.A.
Cold drawn bars

Cold drawn bars are cold finished products achieved by the cold deformation of the wire rod through a die that reduces the diameter and after various controls are cut into the length required. This process achieves the calibration of the wire into the diameter required. We can obtain wire in a wide range of diameters, the mechanical characteristics increase depending on the reduction carried out.

Cold drawn bars can be produced with the following additional operations and controls:
- Heat treatment by annealing (soft and spheroidized annealing and so on)
- Heat treatment by quenching and tempering, normalising or stress reliving by induction (after drawing)
- Ends chamfering
- Surface defect control by Eddy Current
- Anti-mixing control

Sales: Trafilati Martin S.p.A.

Massimo Modonesi

Sales manager Trafilati Martin

Italy

Phone +39 030 7058323

Daniele Calvagno

Key Account Manager

Italy

Phone +39 030 7058344


Novacciai Martin S.p.A.
Peeled & reeled bars

Peeled & reeled bars (+SH EN 10277)
Alloy Steel, Non-Alloy Steel and Stainless Steel
Ø 10,00 ÷ 200,00 ( ≥IT9 ) EN 10278

Cold drawn bars

Cold drawn bars (+C EN 10277)
Alloy Steel, Non-Alloy Steel and Stainless Steel
Ø 8,00 ÷ 74,00 ( ≥IT9 ) EN 10278

Ground Bars

Ground bars
Alloy Steel, Non-Alloy Steel and Stainless Steel
Ø 6,00 ÷ 200,00 (IT9 ÷ IT6) EN 10278

Sales: Novacciai Martin S.p.A.

Simone Locati

Sales

Italy

Phone +39 0321 530605
